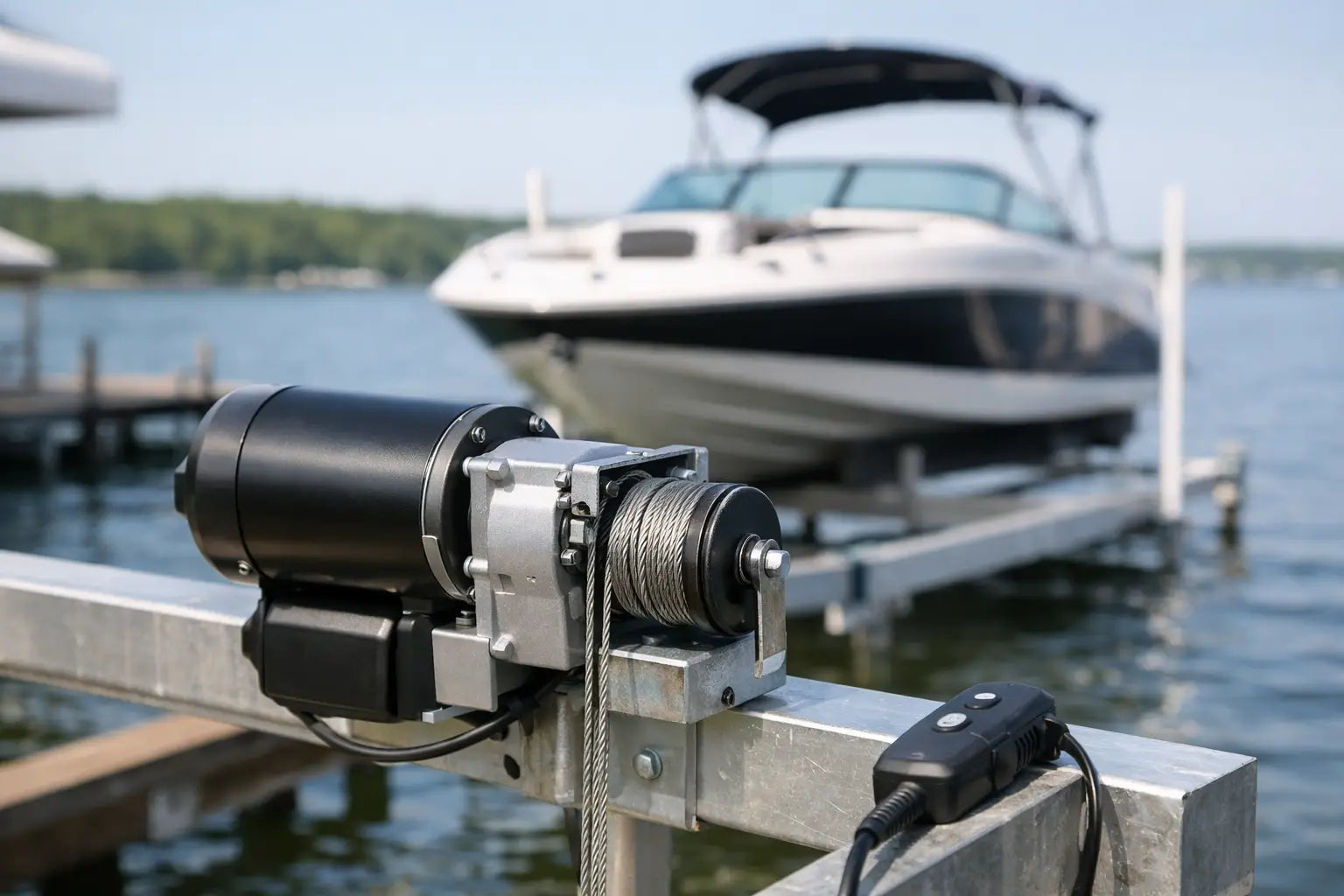

How to Choose a Boat Lift Motor That Fits

A boat lift motor can look like a simple replacement part until the wrong one reaches the dock. A motor with the wrong voltage, mounting pattern, rotation, or horsepower may not fit the gear plate, may strain the lift, or may leave your boat sitting in the water when you planned to launch. Knowing how to choose a boat lift motor starts with the lift itself, not just the boat sitting on it.

The right motor gives you reliable lifting power, predictable operation, and a better start to every day on the water. The goal is not to buy the biggest motor available. It is to match the motor to your lift’s mechanical design, electrical supply, operating conditions, and control system.

How to Choose a Boat Lift Motor for Your Setup

Start with the information already on your existing motor and lift. If the current motor has worked well for years, its nameplate is often the best starting point for a replacement. Photograph the full label before removing anything, including the model number, horsepower, voltage, amperage, RPM, frame or mounting details, and rotation direction.

Then identify the lift manufacturer and model, if possible. Capacity matters, but a 6,000-pound lift from one manufacturer can use a different drive arrangement than another 6,000-pound lift. The gear ratio, cable drum design, pulley configuration, and gear plate all affect what motor belongs on the lift.

Before ordering, confirm these details:

• Lift make, model, and rated lifting capacity
• Existing motor horsepower, voltage, RPM, and rotation direction
• Drive type, such as a gear plate or direct-drive configuration
• Bolt pattern, shaft size, and coupler or pulley connection
• Available power at the dock, including 120-volt or 240-volt service
• Whether the lift uses a wired switch, wireless remote, or auto-stop system

A clear set of photos of the motor, gear plate, and wiring connection can also make compatibility much easier to verify. This is especially valuable when the original lift paperwork has disappeared over a few seasons of waterfront projects.

Match Horsepower to the Lift, Not Just Boat Weight

Horsepower is the specification buyers tend to focus on first, but it should not be chosen in isolation. Your boat’s published dry weight does not account for fuel, batteries, gear, accessories, water trapped in a hull, or the added load created by the lift’s mechanical system. At the same time, more horsepower is not automatically better if the motor does not match the gear plate and designed operating range.

A properly matched motor should raise and lower the boat without excessive heat, bogging, or repeated tripping of overload protection. If the old motor struggled when lifting a fully fueled boat, that may point to an undersized motor, but it can also signal worn cables, dry pulleys, a binding cradle, incorrect cable winding, or a problem inside the gearbox.

For that reason, treat a weak lift as a system diagnosis rather than a reason to immediately jump to a larger motor. Installing more horsepower on a lift with mechanical resistance can create additional stress where you do not want it: on cables, sheaves, gear components, and mounting hardware.

When replacing a working motor, matching the existing horsepower is usually the sensible path. When changing boat size, lift configuration, or drive equipment, verify the recommended horsepower with the lift manufacturer or a boat lift specialist before making the change.

Torque and RPM matter, too

Horsepower gets the headline, but torque and speed do the work. Boat lift motors are paired with a reduction system that converts motor speed into the torque needed to turn the lift’s drive. A motor with the wrong RPM can alter lift speed or load the gear system improperly, even when its horsepower rating appears correct.

Most replacement decisions are best made by matching the original motor’s RPM as closely as possible. Do not assume two motors with the same horsepower will perform the same way. The motor’s speed, shaft configuration, and the gear ratio on your lift all need to work together.

Confirm Voltage and Electrical Requirements

Voltage mismatch is one of the most avoidable replacement mistakes. Many residential lifts use either 120-volt or 240-volt power, and the motor must be selected and wired for the service available at the dock. A 240-volt motor cannot simply be plugged into a standard 120-volt outlet, and trying to force a mismatch can damage equipment or create a serious safety risk.

Check the motor nameplate, the supply circuit, breaker size, disconnect, and control box before choosing a replacement. Some motors are dual-voltage capable, but they still must be configured correctly for the incoming power. This is not a detail to guess at.

Dockside electrical equipment should be protected by properly installed equipment rated for the environment and wired in accordance with applicable electrical codes. If you are not comfortable reading the circuit and motor wiring information, have a qualified marine or electrical professional verify it. A correct motor installation depends on safe power delivery as much as mechanical fit.

Choose the Right Drive and Mounting Style

Boat lift motors are not universally interchangeable. The connection between the motor and lift can be a gear plate arrangement, a direct-drive assembly, or another manufacturer-specific design. Bolt placement, shaft diameter, shaft length, coupling style, and motor orientation all affect whether the replacement will install correctly.

A gear plate motor must align properly with the plate and drive components. An almost-right bolt pattern is still wrong, and modifying mounting holes can compromise alignment. Misalignment often shows up as noise, vibration, premature coupler wear, or difficulty lifting under load.

Rotation direction deserves the same attention. Depending on the lift design and viewing position, the motor may need clockwise or counterclockwise rotation. Reversing the wrong motor can cause unsafe operation or prevent the lift from moving as intended. Use the original motor documentation and lift specifications rather than relying on visual assumptions.

If your lift uses a belt, pulley, or external gearbox, inspect those components while the motor is off. A new motor cannot compensate for a worn belt, loose hardware, cracked coupler, or damaged gear assembly. This is a good opportunity to correct the small issues that turn into a lost weekend on the water.

Select a Motor Built for Dockside Conditions

A boat lift motor lives outdoors around moisture, heat, UV exposure, and changing seasonal temperatures. For many waterfront installations, a TENV motor, meaning totally enclosed non-ventilated, is a strong choice because its enclosed design helps keep out debris and moisture that can enter open motors.

The surrounding components matter as well. Look for corrosion-resistant hardware, a durable finish, quality seals, and a properly protected electrical connection. Saltwater and brackish environments demand even more attention to corrosion control than a freshwater lake lift. In those locations, routine rinsing, inspection, and prompt replacement of corroded hardware protect both the motor and the lift structure.

Weather protection does have practical limits. A motor should not be repeatedly submerged, sprayed directly with high-pressure water, or left with damaged conduit and exposed wiring. A proper cover or enclosure can help when it does not restrict the motor’s intended operation or access for service.

Make Sure the Motor Works With Your Controls

A replacement motor needs to work with more than the lift hardware. It also needs to operate correctly with your switch, wireless control, and safety features. If you use a wireless boat lift remote or auto-stop remote system, confirm that the control setup supports the motor voltage, current draw, and wiring configuration.

Auto-stop protection is particularly valuable because it helps stop travel at the desired upper and lower limits. That protects the boat, lift, cables, and dock area from the consequences of overtravel. But the limit switches must be installed, adjusted, and tested correctly after any motor or control upgrade.

Consider how you use the lift, too. A basic manual control may be sufficient for a lightly used personal-watercraft lift. For a family dock where several people launch the boat, wireless control and dependable auto-stop operation can make the entire waterfront easier to use. The best upgrade is often the one that improves both reliability and daily convenience.

Replace at the Right Time

A motor that hums without lifting, trips breakers, overheats, starts inconsistently, or makes new grinding sounds deserves attention before it fails completely. Check the electrical supply and the mechanical condition of the lift first. Once the motor is confirmed as the problem, replacing it before peak boating season is usually far less stressful than waiting for a failure with the boat stranded on the lift or in the water.

When the specifications are unclear, do not order based on a photo of a similar-looking motor. Dock Solutions can help owners compare motor details with their lift and control setup so the replacement decision is based on compatibility, not guesswork.

Your boat lift should be the dependable part of waterfront ownership: raise the boat, protect it between outings, and let the next launch feel easy. Taking a few extra minutes to verify the motor’s fit now helps keep your dock ready for the days you actually want to spend on the water.
